Linksys SE1500 5-Port Fast Ethernet Switch User Manual

1. សេចក្តីផ្តើម

The Linksys SE1500 is a 5-Port Fast Ethernet Switch designed to expand your wired network. It allows you to connect up to five devices, such as computers, printers, storage devices, and gaming consoles, at speeds up to 100 Mbps. This device provides a simple and efficient way to add more wired connections to your existing network without complex configuration.

រូបភាពទី 1: ផ្នែកខាងមុខ view of the Linksys SE1500 5-Port Fast Ethernet Switch.

2. មាតិកាកញ្ចប់

ផ្ទៀងផ្ទាត់ថាកញ្ចប់របស់អ្នកមានធាតុដូចខាងក្រោម៖

• Linksys SE1500 5-Port 10/100 Switch
• អាដាប់ទ័រថាមពល
• មគ្គុទ្ទេសក៍ចាប់ផ្តើមរហ័ស (មិនរួមបញ្ចូលក្នុងសៀវភៅណែនាំនេះ)

លក្ខណៈពិសេសនៃផលិតផល

The Linksys SE1500 switch offers the following key features:

• 5 Fast Ethernet Ports: Provides five 10/100 Mbps ports for connecting wired devices.
• Auto-Sensing Ports: Automatically detects and optimizes the speed for each connected device.
• គុណភាពនៃសេវាកម្ម (QoS)៖ Prioritizes traffic for smooth performance of bandwidth-intensive applications.
• មុខងារសន្សំថាមពល៖ Includes auto power-down for unused ports and a port status switch to disable LED indicators, reducing energy consumption.
• ដាក់​ចូល​ហើយ​លេង: Requires no software configuration for basic operation.

4. ការណែនាំអំពីការដំឡើង

Follow these steps to set up your Linksys SE1500 switch:

1. ដាក់កុងតាក់៖ ដាក់កុងតាក់នៅលើផ្ទៃរាបស្មើ និងមានស្ថេរភាព ឬដំឡើងវានៅទីតាំងសមស្រប។ ត្រូវប្រាកដថាមានខ្យល់ចេញចូលគ្រប់គ្រាន់នៅជុំវិញឧបករណ៍។
2. ភ្ជាប់អាដាប់ទ័រថាមពល៖ Plug the included power adapter into the 12V DC port on the back of the switch. Then, plug the other end of the power adapter into a standard electrical outlet. The power LED on the front of the switch should illuminate.
3. Connect to Your Network: Connect an Ethernet cable from your router or modem to any of the five numbered Ethernet ports on the back of the SE1500 switch.
4. ភ្ជាប់ឧបករណ៍៖ Connect your wired devices (e.g., computer, printer, gaming console) to the remaining Ethernet ports on the switch using Ethernet cables. The switch's auto-sensing ports will automatically detect the connection speed.

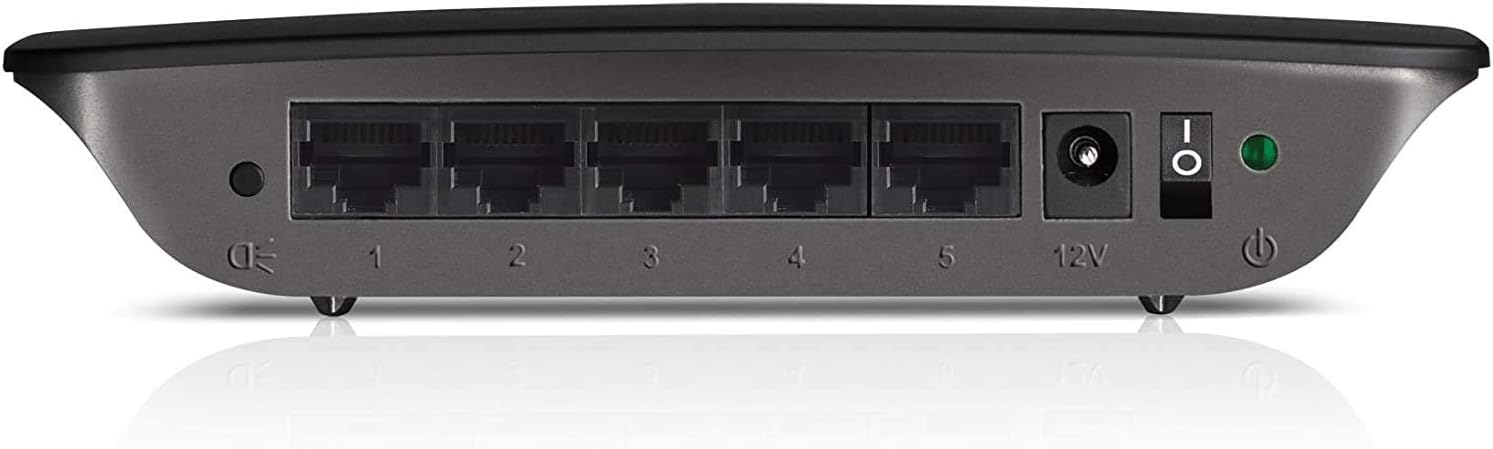

Figure 2: Rear panel of the Linksys SE1500, showing Ethernet ports, power input, and power switch.

5. សេចក្តីណែនាំប្រតិបត្តិការ

The Linksys SE1500 is a plug-and-play device, meaning it typically requires no software configuration. Once connected, it operates automatically.

សូចនាករ LED

បន្ទះខាងមុខនៃកុងតាក់មានសូចនាករ LED ដើម្បីផ្តល់ព័ត៌មានស្ថានភាព៖

• ថាមពល LED៖ បំភ្លឺនៅពេលដែលកុងតាក់ត្រូវបានបើក។
• រន្ធ LED (1-5): Each numbered port has an associated LED.
  • បៃតងរឹង៖ Indicates a successful link connection at 100 Mbps.
  • អំបោះរឹង៖ Indicates a successful link connection at 10 Mbps.
  • ពន្លឺ៖ Indicates network activity (data transmission).
  • បិទ៖ No link detected or port is inactive.

របៀបសន្សំថាមពល

The SE1500 automatically enters a power-saving mode when a connected device is turned off or when a port is unused. This feature helps reduce energy consumption. You can also use the port status switch on the rear panel to turn off the port LEDs if desired.

6. ការថែទាំ

To ensure optimal performance and longevity of your Linksys SE1500 switch, consider the following maintenance tips:

• រក្សាអនាម័យ៖ Regularly wipe the exterior of the switch with a soft, dry cloth. Avoid using liquid cleaners or aerosols.
• ធានាឱ្យមានខ្យល់ចេញចូល៖ Do not block the ventilation openings on the switch. Ensure it is placed in an area with good airflow to prevent overheating.
• ការគ្រប់គ្រងខ្សែកាបៈ Keep Ethernet cables neatly organized to prevent accidental disconnections or damage.
• Power Cycle (if needed): If the switch becomes unresponsive, disconnect the power adapter, wait 10 seconds, and then reconnect it.

7. ការដោះស្រាយបញ្ហា

If you encounter issues with your Linksys SE1500 switch, try the following troubleshooting steps:

• គ្មានថាមពល៖
  • ត្រូវប្រាកដថាអាដាប់ទ័រថាមពលត្រូវបានភ្ជាប់ដោយសុវត្ថិភាពទៅនឹងកុងតាក់ និងព្រីអគ្គិសនីដែលកំពុងដំណើរការ។
  • Verify the power switch on the rear panel is in the "On" position.
• គ្មានពន្លឺភ្ជាប់៖
  • សូមពិនិត្យមើលថាខ្សែ Ethernet ត្រូវបានភ្ជាប់យ៉ាងរឹងមាំទៅនឹងរន្ធស្វីច និងឧបករណ៍ដែលបានភ្ជាប់។
  • សាកល្បងខ្សែអ៊ីសឺរណិតផ្សេង។
  • ត្រូវប្រាកដថាឧបករណ៍ដែលបានភ្ជាប់ត្រូវបានបើក និងដំណើរការបានត្រឹមត្រូវ។
  • If the port status switch is off, toggle it to enable the LEDs.
• ល្បឿនបណ្តាញយឺត៖
  • Ensure all connected devices and cables support Fast Ethernet (100 Mbps) for optimal performance.
  • Check for excessive network traffic or issues with your internet service provider (ISP) or router.
• ការតភ្ជាប់បណ្តោះអាសន្ន៖
  • Inspect Ethernet cables for damage.
  • Try connecting devices to different ports on the switch.
  • Power cycle the switch, router, and connected devices.

8. លក្ខណៈបច្ចេកទេស

9. ការធានា និងការគាំទ្រ

For detailed warranty information and technical support, please refer to the documentation included with your purchase or visit the official Linksys support webគេហទំព័រ។ លក្ខខណ្ឌនៃការធានាអាចប្រែប្រួលតាមតំបន់។

ការគាំទ្រ Linksys Webគេហទំព័រ៖ www.linksys.com/support
