សេចក្តីផ្តើម
This manual provides essential information for the proper installation, operation, and maintenance of your new Generic replacement carburetor. This carburetor is designed for compatibility with Ariens 824 Model 932101 snowblowers. Please read these instructions thoroughly before proceeding with installation or use to ensure safe and efficient operation.
ព័ត៌មានសុវត្ថិភាព
Always prioritize safety when working with fuel systems and power equipment. Failure to follow safety precautions can result in serious injury or property damage.
- ផ្តាច់ឌុយផ្កាភ្លើង៖ មុនពេលអនុវត្តការថែទាំ ឬការដំឡើងណាមួយ ត្រូវផ្តាច់ខ្សែឌុយជានិច្ច ដើម្បីការពារការចាប់ផ្តើមម៉ាស៊ីនដោយចៃដន្យ។
- ធ្វើការនៅតំបន់ដែលមានខ្យល់ចេញចូលល្អ៖ Gasoline fumes are flammable and hazardous. Ensure adequate ventilation.
- Handle Fuel Carefully: Gasoline is highly flammable. Avoid spills and keep away from open flames or ignition sources.
- ពាក់ឧបករណ៍ការពារ៖ Use safety glasses and gloves to protect against fuel, chemicals, and sharp edges.
- អនុញ្ញាតឱ្យម៉ាស៊ីនត្រជាក់៖ Never work on a hot engine. Allow sufficient time for the engine and exhaust system to cool down.
ការដំឡើង
This section outlines the general procedure for replacing a carburetor. Specific steps may vary slightly depending on your snowblower model. Refer to your snowblower's original service manual for detailed instructions if necessary.
ឧបករណ៍ដែលត្រូវការ
- wrench សំណុំរន្ធ
- ឈុតទួណឺវីស (ក្បាលសំប៉ែត និង ក្បាលហ្វីលីព)
- ដង្កៀប
- បន្ទាត់ឥន្ធនៈ clamps or pinch-off tool
- សម្អាតក្រណាត់
- New fuel line (optional, recommended if old line is brittle)
ការរៀបចំ
- Ensure the snowblower engine is cool.
- Turn off the fuel supply valve (if equipped) or drain the fuel tank into an approved container.
- ផ្តាច់ខ្សែភ្លើងផ្កាភ្លើង។
- Remove any shrouds or covers that obstruct access to the carburetor.
ការដក Carburetor
- Carefully disconnect the fuel line from the carburetor. Be prepared for residual fuel to leak.
- Disconnect any throttle linkage, choke linkage, and governor springs attached to the carburetor. Note their positions for reassembly.
- Unbolt the carburetor from the engine intake manifold. There may be two or more nuts holding it in place.
- Remove the old carburetor and any old gaskets. Inspect the intake manifold for debris or damage.
រូបភាពទី 1: ខាងមុខ view of the Generic carburetor with a new gasket. This image shows the main body of the carburetor, the intake port, and the included mounting gasket, which is crucial for a proper seal during installation.
ការដំឡើង Carburetor
- Ensure the mounting surfaces on the engine and carburetor are clean and free of old gasket material.
- Place the new gasket(s) in the correct position between the carburetor and the engine intake manifold.
- Mount the new carburetor onto the engine, aligning it with the bolt holes.
- Secure the carburetor with the bolts, tightening them evenly to prevent warping. Do not overtighten.
- Reconnect the throttle linkage, choke linkage, and governor springs to their original positions. Ensure they move freely.
- Reconnect the fuel line to the carburetor. Secure it with a clamp.
- Replace any shrouds or covers removed earlier.
- ភ្ជាប់ខ្សែភ្លើងដោតភ្លើងឡើងវិញ។
រូបភាពទី ៣៖ ចំហៀង view of the Generic carburetor, highlighting the fuel inlet port. This port is where the fuel line from the tank connects to the carburetor.

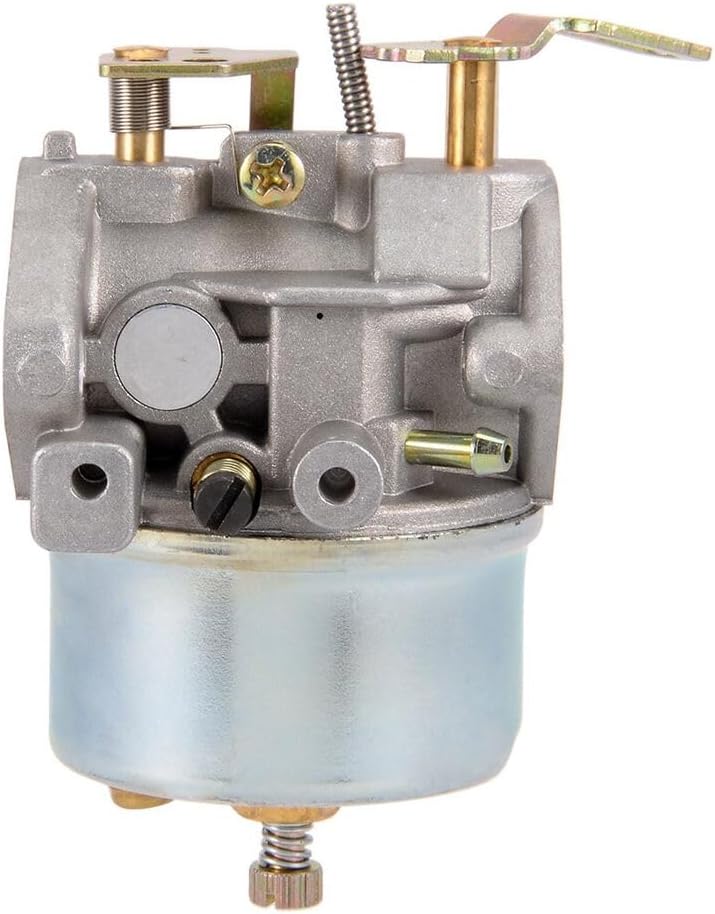

រូបភាព ៨.៣៖ ម្ខាងទៀត។ view of the Generic carburetor, showing various linkage attachment points for the throttle and choke mechanisms. Proper connection of these linkages is essential for engine control.
សេចក្តីណែនាំប្រតិបត្តិការ
After installation, perform the following checks before attempting to start the engine.
ការត្រួតពិនិត្យក្រោយការដំឡើង
- ការលេចធ្លាយប្រេងឥន្ធនៈ៖ Inspect all fuel line connections for any signs of leakage. Tighten connections if necessary.
- Linkage Movement: Verify that the throttle and choke linkages move freely and return to their default positions.
- ភាពតឹងណែន៖ ត្រូវប្រាកដថាប៊ូឡុង និងឧបករណ៍ភ្ជាប់ទាំងអស់ត្រូវបានរឹតបន្តឹងដោយសុវត្ថិភាព។
Initial Engine Start-Up
- បើកសន្ទះផ្គត់ផ្គង់ប្រេងឥន្ធនៈ។
- Prime the carburetor if your snowblower has a primer bulb, typically 3-5 pushes.
- Set the choke to the FULL CHOKE position.
- កំណត់បិទបើកទៅទីតាំង FAST ។
- ទាញខ្សែចាប់ផ្ដើមឲ្យជាប់រហូតដល់ម៉ាស៊ីនចាប់ផ្ដើម។
- Once the engine starts, gradually move the choke to the OFF position as the engine warms up.
- Allow the engine to warm up for a few minutes before operating the snowblower.
រូបភាពទី 4៖ ពីលើចុះក្រោម view of the Generic carburetor intake, showing the butterfly valve. This view is important for understanding air flow and choke operation.
ថែទាំ
Regular maintenance of your carburetor and fuel system will ensure optimal performance and extend the life of your snowblower.
ការសម្អាត
- ការសម្អាតផ្នែកខាងក្រៅ៖ Keep the exterior of the carburetor clean from dirt, debris, and fuel residue.
- តម្រងខ្យល់៖ Regularly check and clean or replace the air filter as per your snowblower's manual. A clogged air filter can affect carburetor performance.
- Fuel Bowl: If the engine runs poorly, the carburetor fuel bowl may need to be drained or cleaned to remove sediment. This typically involves removing the drain screw or the entire bowl.
Fuel System Care
- Fresh Fuel: Always use fresh, clean gasoline. Stale fuel can cause deposits and clog carburetor passages.
- ស្ថេរភាពប្រេងឥន្ធនៈ៖ Use a fuel stabilizer, especially if storing the snowblower for extended periods.
- តម្រងប្រេងឥន្ធនៈ៖ Check and replace the in-line fuel filter (if present) periodically.
ការផ្ទុក
- Before long-term storage, either run the engine until it runs out of fuel or drain the fuel tank and carburetor bowl completely. This prevents fuel degradation and carburetor clogging.
ការដោះស្រាយបញ្ហា
If your snowblower experiences issues after carburetor replacement, consider the following common problems and solutions:
- ម៉ាស៊ីននឹងមិនចាប់ផ្តើមទេ៖
- Check for fuel in the tank.
- ត្រូវប្រាកដថាសន្ទះប្រេងឥន្ធនៈបើក។
- ផ្ទៀងផ្ទាត់ការតភ្ជាប់ និងស្ថានភាពប៊ូហ្ស៊ី។
- Confirm choke is set correctly.
- Check for proper fuel flow to the carburetor.
- Engine Runs Rough or Idles Poorly:
- Ensure all linkages are connected and moving freely.
- Check for air leaks around the carburetor mounting gaskets.
- ពិនិត្យមើលតម្រងខ្យល់សម្រាប់ការស្ទះ។
- Consider if fuel is stale or contaminated.
- ការលេចធ្លាយប្រេងឥន្ធនៈ៖
- Check all fuel line connections and clamps.
- Ensure carburetor bowl drain screw is tight.
- Inspect carburetor gaskets for proper sealing.
If issues persist, consult a qualified service technician or your snowblower's original service manual.
លក្ខណៈបច្ចេកទេស
| លក្ខណៈ | លម្អិត |
|---|---|
| ប្រភេទផលិតផល | Replacement Carburetor |
| ភាពឆបគ្នា។ | Ariens 824 Model 932101 Snowblower |
| ក្រុមហ៊ុនផលិត | ទូទៅ |
| លេខម៉ូដែលធាតុ | ទូទៅ |
| វិមាត្រផលិតផល | 1 x 1 x 1 អ៊ីញ (ប្រហាក់ប្រហែល) |
| ទំងន់ធាតុ | 1 ផោន (ប្រហាក់ប្រហែល) |
ការធានា និងការគាំទ្រ
This Generic replacement carburetor is manufactured to meet or exceed original equipment specifications. For any warranty claims or technical support, please contact the seller directly through your purchase platform. Keep your proof of purchase for any warranty inquiries.
